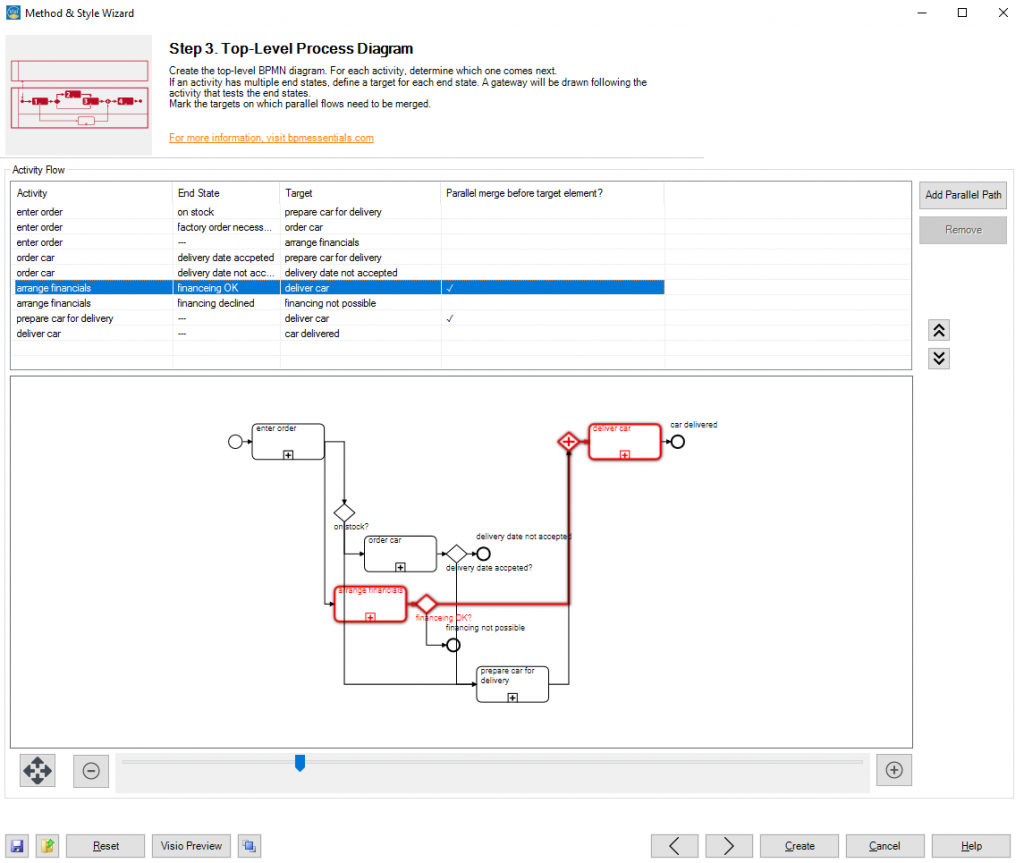

The Method & Style Wizard will automatically generate a first diagram draft based on some user input, following the Method & Style rules defined by bpmessentials.com.

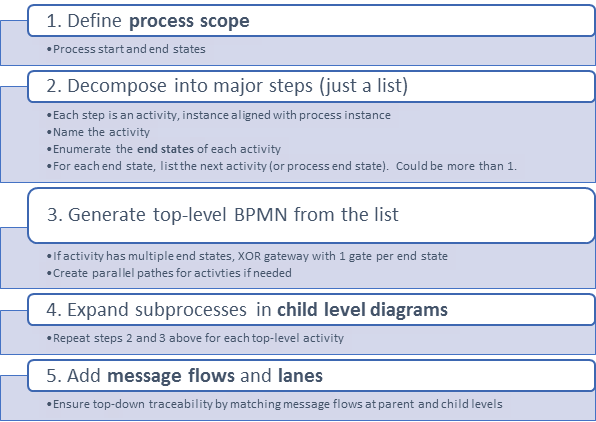

The aim of the wizard is to assist the process designer in the creation of a correct, consistent, appealing and unambiguous BPMN 2.0 model with the help of pointed questions. This concept – known as “BPMN Method & Style” – has been developed by Bruce Silver and itp-commerce ltd. (2007-2014).
Method & Style Wizard
Method & Style Wizard
The goals of this joint venture include
- Provide BPM training and certification
- Best known for BPMN Method and Style training
- Method and Style
- Focused on “Good BPMN” – process logic should be clear from the printed diagram
Barriers to “Good BPMN”
- The hierarchical modeling problem: How to trace process logic easily from parent to child level
- Structural integrity and consistency: Instance of each activity must have 1:1 correspondence with process instance
Benefits
- guided usage of the method
- stay focused on the business aspects

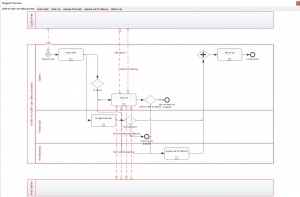

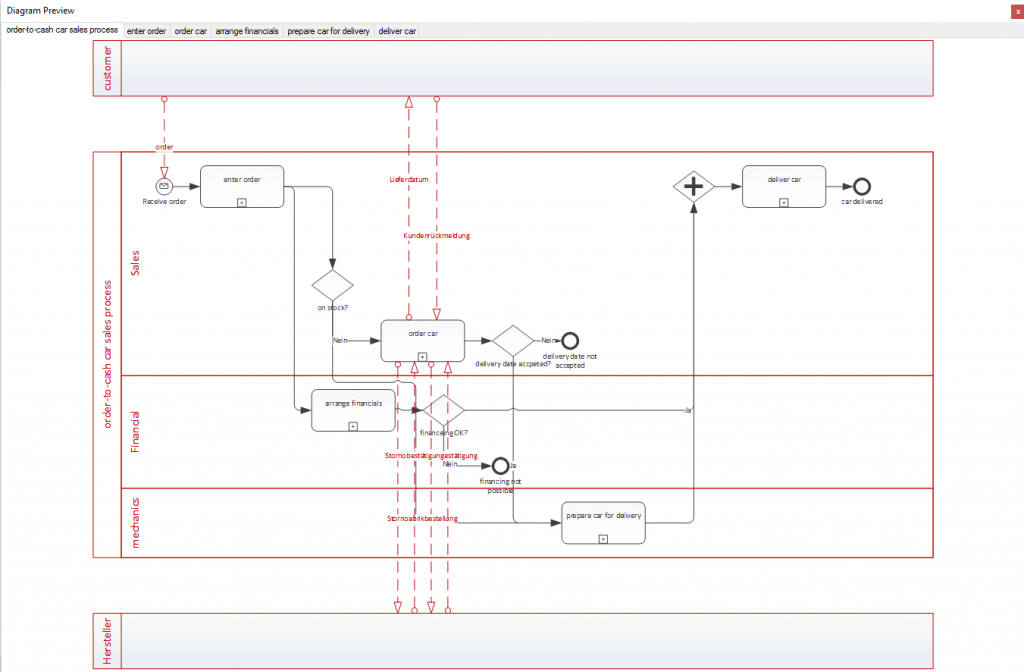

- sophisticated previews
- Visio diagram generation of error free BPD’s
- let’s save you working copies at any time
- load former tries from external file or repository
M&S Wizard
